Thermal imaging camera IS-TC1A.2
0,00 zł

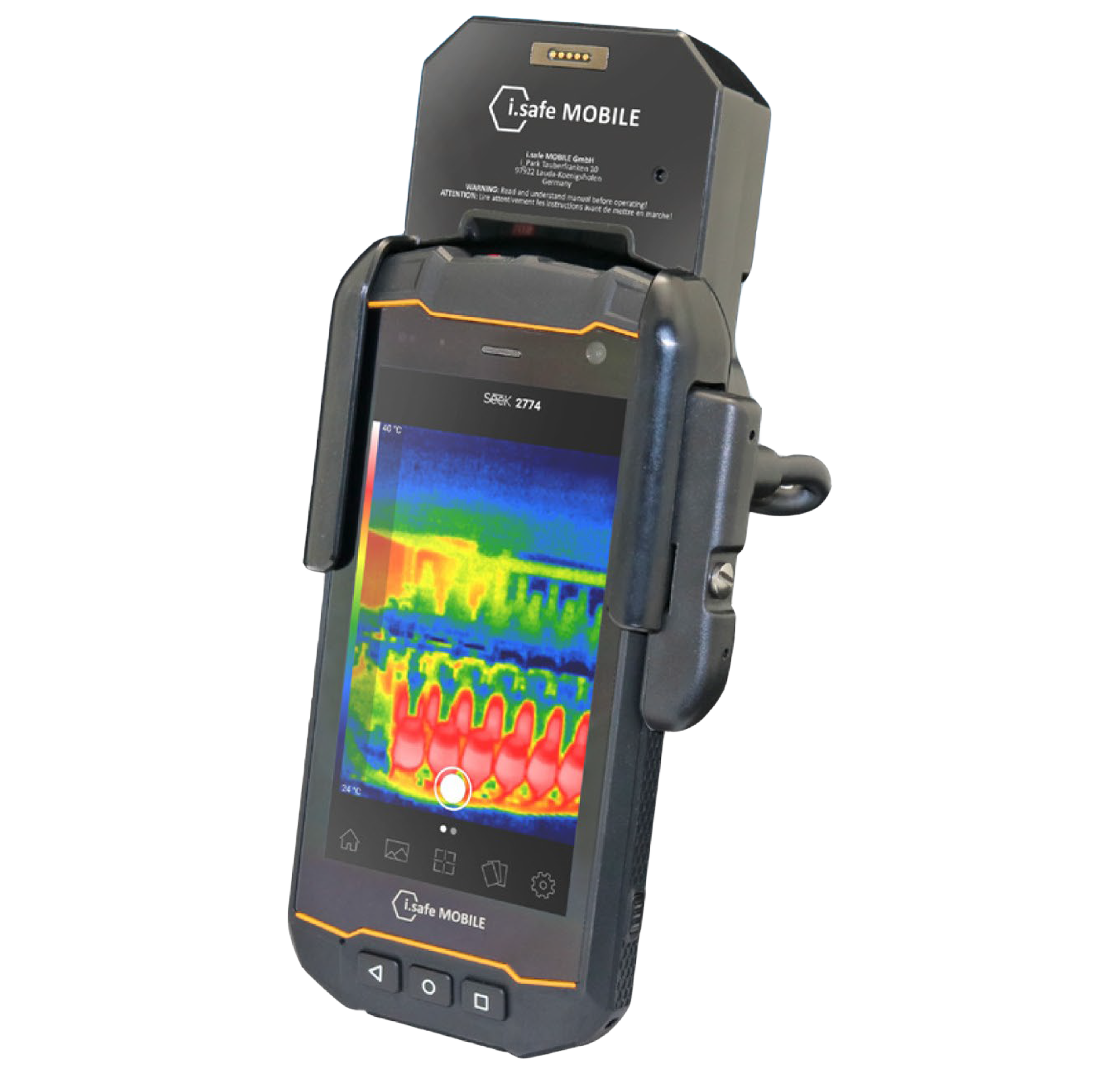

The IS-TC1A.2 thermal imaging camera combined with the IS530.2 industrial smartphone detects temperatures in hazardous areas from -40 °C to 330 °C in seconds using the Seek Thermal app (free download on Google Play). Thermal images and video are processed and documented by the ISM interface of the IS530.2 smartphone.
Explosion-proof feature:.
ATEX:
II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIC T135°C Dc
IECEx:
Ex ic IIC T4 Gc
Ex ic IIIC T135°C Dc
Benefits:
- Recording, analysis, and documentation of thermal imaging.
- Wide range of operation.
- For zone 2/22.
Characteristics:
Sensor resolution:
200 (h) x 150 (v) / 30000 pixels / FixFocus / digital zoom
Sensor sensitivity:
65 mK (typical)
Frame rate:
<9 Hz to 32 Hz
Operating range:
Temperature from -40 °C to 330 °C
Measurement accuracy:
± 7 °C and 7% (from 5 °C to 140 °C) / ± 1 O °C and 1 O% (from 140 °C to 330 °C)
Detection range:
Up to 300 m
Recognition range:
Up to 75 m
Identification range:
Up to 25 m
Viewing range:
35° (HFOV) / 26° (VFOV)
Communication:
via ISM smartphone IS530.1
Power supply:
via connected device
Dimensions: Size:
112 x 82 x 50 mm / weight: 190 g
Protection type:
IP67 I MIL-STD 81 0H / operating range at -10 °C to + 60 °C
